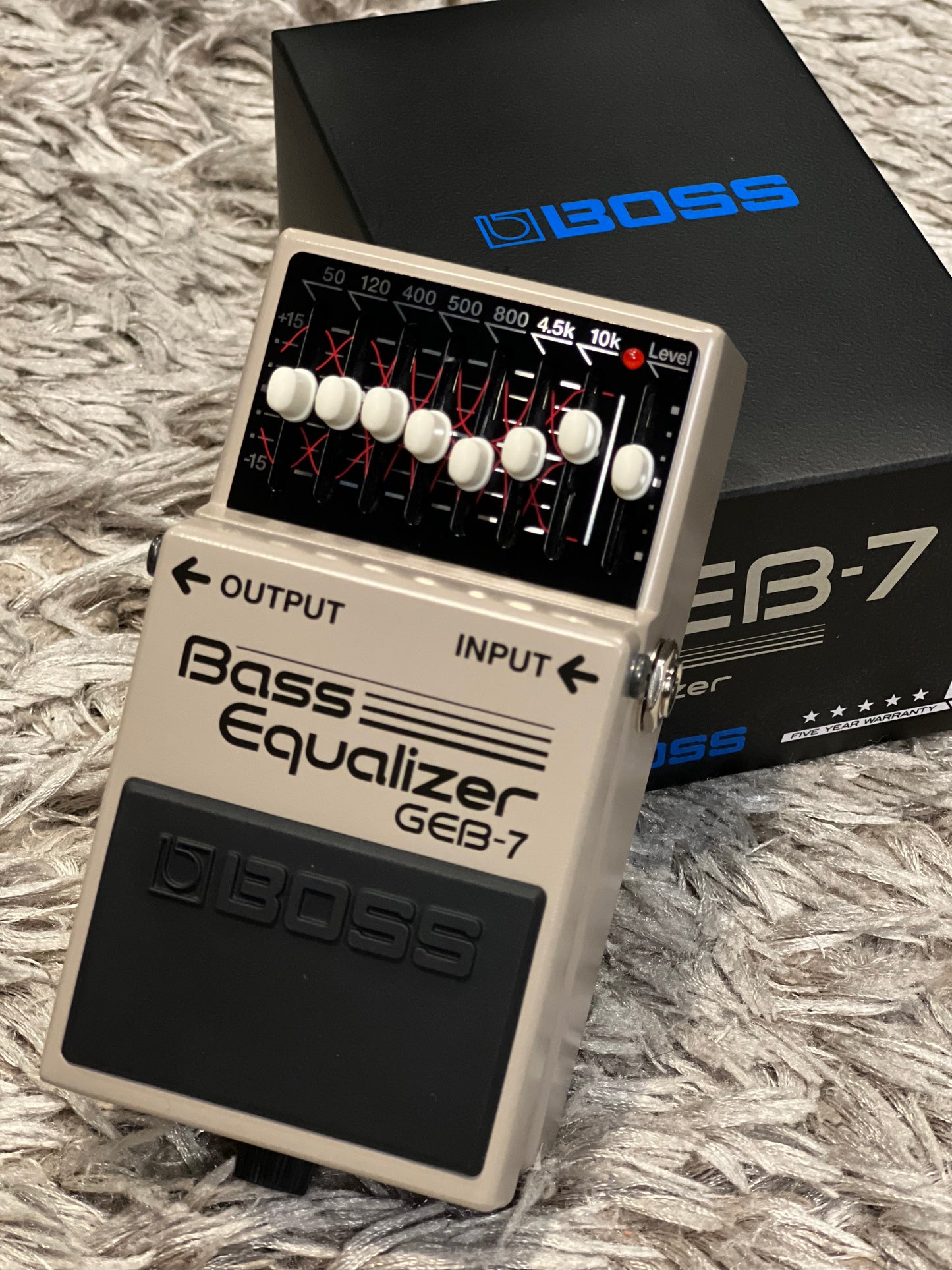

bass eq pedal Boss GEB-7 7-band Bass EQ Pedal – nafiriguitar.comPRECISE TONAL CONTROL The GEB 7 is a seven band equalizer created specifically for the frequency range of the electric bass. Since the frequency range extends down to 50Hz, the GEB 7 is also great for adjusting depth and bottom end of an upright bass with pickups. FEATURES 50Hz to 10kHz frequency range specifically designed for bass Full range response, even for five and six string basses Can be used as a boost or cut pedal using the level control

PRECISE TONAL CONTROL

The GEB-7 is a seven-band equalizer created specifically for the frequency range of the electric bass. Since the frequency range extends down to 50Hz, the GEB-7 is also great for adjusting depth and bottom end of an upright bass with pickups.

FEATURES

50Hz to 10kHz frequency range specifically designed for bass
Full range response, even for five- and six-string basses
Can be used as a “boost” or “cut” pedal using the level control knob
Great for eletric-acoustic bass applications
AC adaptor or 9V battery operation
BOSS five-year warranty

OTHER

Bypass
Buffered bypass

Controls
Level Control knob
Equalizer Control knob
50, 120, 400, 500, 800, 4.5 k, 10 kHz
Pedal switch

Indicator
CHECK indicator (Serves also as battery check indicator)

Connectors
INPUT jack: 1/4-inch phone type
OUTPUT jack: 1/4-inch phone type
DC IN jack

Power Supply
Carbon-zinc battery (9 V, 6F22)
Alkaline battery (9 V, 6LR61)
AC adaptor (PSA series: sold separately)

Current Draw
30 mA

Expected battery life under continuous use
Carbon: Approx. 8.5 hours
Alkaline: Approx. 18.5 hours
*These figures will vary depending on the actual conditions of use.

Accessories
Leaflet (“USING THE UNIT SAFELY,” “IMPORTANT NOTES,” and “Information”)
Carbon-zinc battery (9 V, 6F22)

Options (sold separately)
AC adaptor: PSA series
